Filtermist FX Series Oil Mist Collector

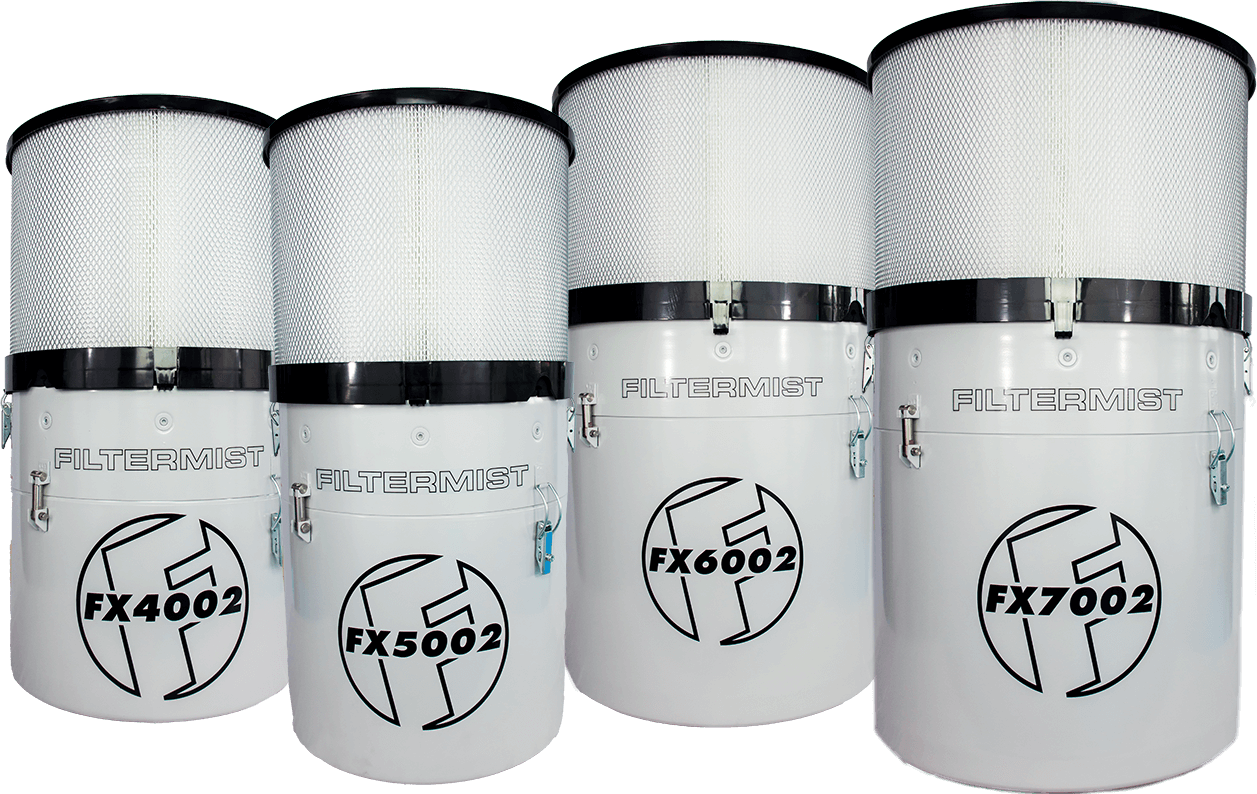

Compact oil mist collectors
1250 m3/hr – 2750 m3/hr
The industry-proven solution for eliminating oil mist from manufacturing environments, trusted by world leading manufacturers since 1969.
The industry-proven solution for eliminating oil mist from manufacturing environments, trusted by world leading manufacturers since 1969.
Compact | Quiet | Efficient
Multiple Mounting Options
FX oil mist collectors are available with a number of mounting options including floor stands and machine mounts.
Worldwide Compatibility
Filtermist oil mist collector units are used in more than 60 countries worldwide and are designed to operate efficiently on a wide range of industrial power supplies.
Stainless Steel

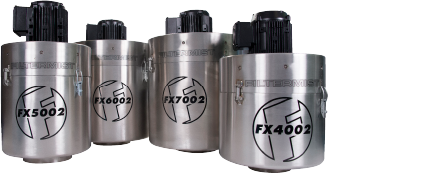

Filtermist FX and S series oil mist collectors are available in standard mild steel construction and also stainless steel versions for use in hazardous or corrosive environments.
Tech Data

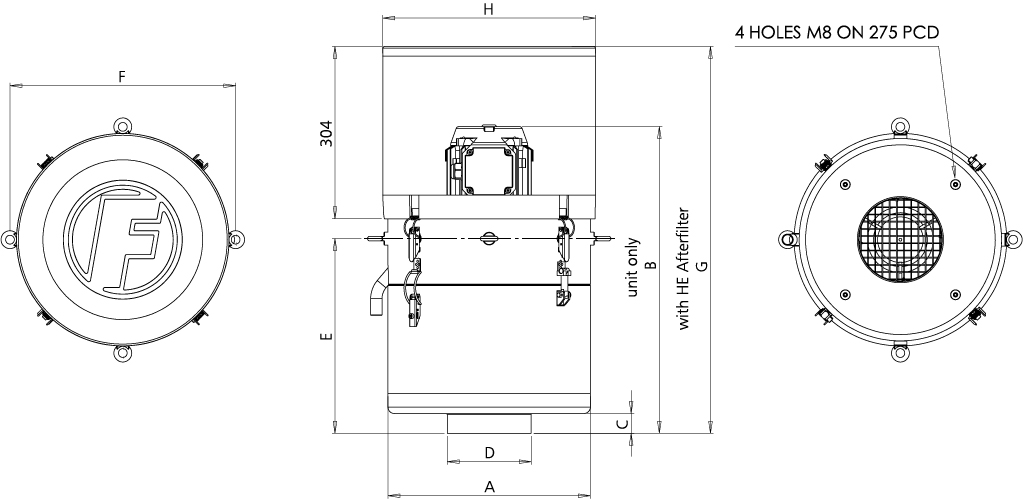

| Model | Airflow m3/hr | Motor 1 | A mm | B mm | C mm | D mm | E mm | F mm | G mm | H mm | Weight 2 kg | Noise 3 dBA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FX4002 | 1250 @ 50Hz 1500 @ 60Hz |
1.1kW 50Hz 200v, 220v, 380v, 400v |
1.1kW 60Hz 200v, 220v, 230v, 440v, 460v, 480v |
357 | 532 | 35 | 148 | 309 | 398 | 682.50 | 375 | 23 | 70 |
| FX5002 | 1675 @ 50Hz 2000 @ 60Hz |
1.5kW 50Hz 200v, 220v, 380v, 400v |
1.5kW 60Hz 200v, 220v, 230v, 440v, 460v, 480v |
357 | 613 | 35 | 198 | 378 | 398 | 751.50 | 375 | 27.5 | 71 |
| FX6002 | 2000 @ 50Hz 2400 @ 60Hz |
2.2kW 50Hz 200v, 220v, 380v, 400v |
2.2kW 60Hz 220v, 230v, 440v, 460v, 480v |
438 | 642 | 35 | 198 | 432 | 485 | 805.50 | 456 | 37 | 73 |
| FX7002 | 2750 @ 50Hz | 2.2kW 50Hz 200v, 220v, 380v, 400v |
not available | 438 | 642 | 35 | 198 | 432 | 485 | 805.50 | 456 | 37 | 73 |
- 1 Motors to be used on specified voltages only.
- 2 +/- 5% tolerance
- 3 Results are in test conditions ± 3% tolerance. Local variations and in use conditions may affect readings.
Accessories
The S/FX Series can be fitted with prefilters, afterfilters and stands - see Filtermist oil mist collector accessories.
