Filtermist S Series Oil Mist Collector

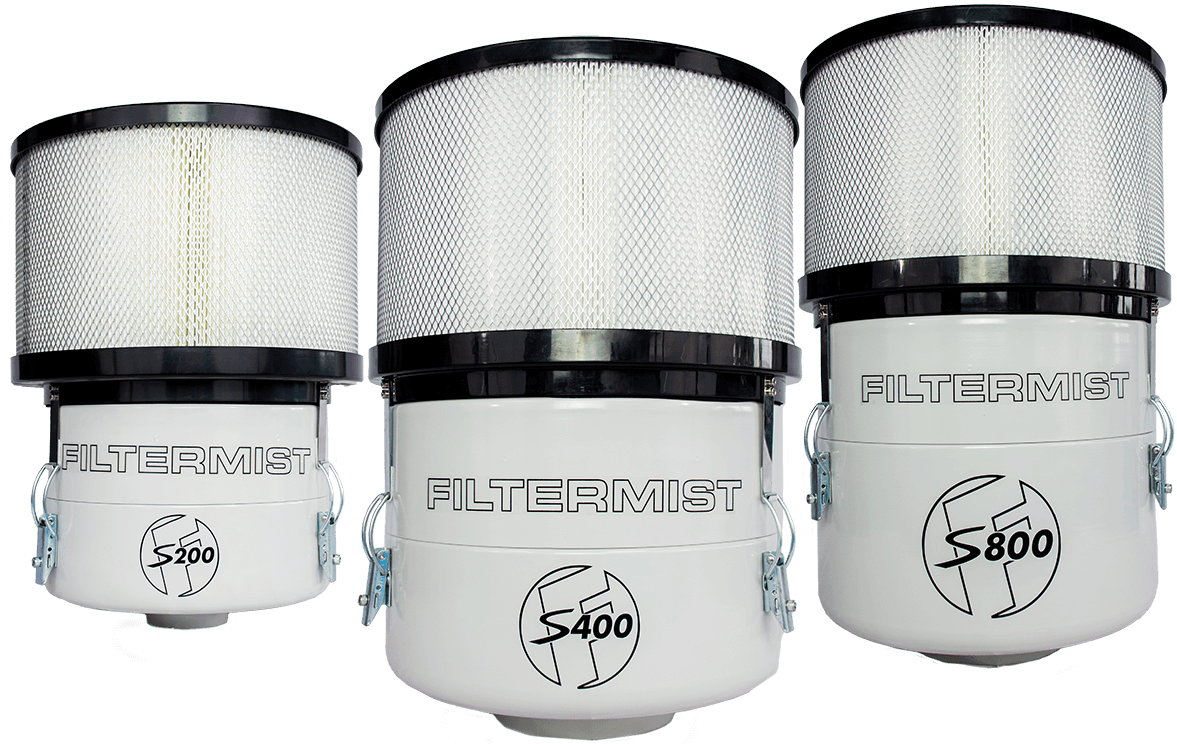

Ultra-compact oil mist collector
180 m3/hr – 950 m3/hr
The industry-proven solution for eliminating oil mist from manufacturing environments, trusted by world leading manufacturers since 1969.
The industry-proven solution for eliminating oil mist from manufacturing environments, trusted by world leading manufacturers since 1969.
Compact | Quiet | Efficient
Multiple Mounting Options
Filtermist’s S Series oil mist collectors are compact, lightweight and designed to be directly mounted onto machine tools. They can also be fitted using floor stands and machine mounting brackets.
Energy Efficient Oil Mist Extraction
Fitted with either 0.18kW or 0.55kW motors, S Series oil mist collector units are low energy users.

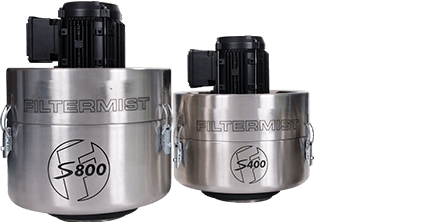

Stainless Steel
Filtermist FX and S series oil mist collectors are available in standard mild steel construction and also stainless steel versions for use in hazardous or corrosive environments.

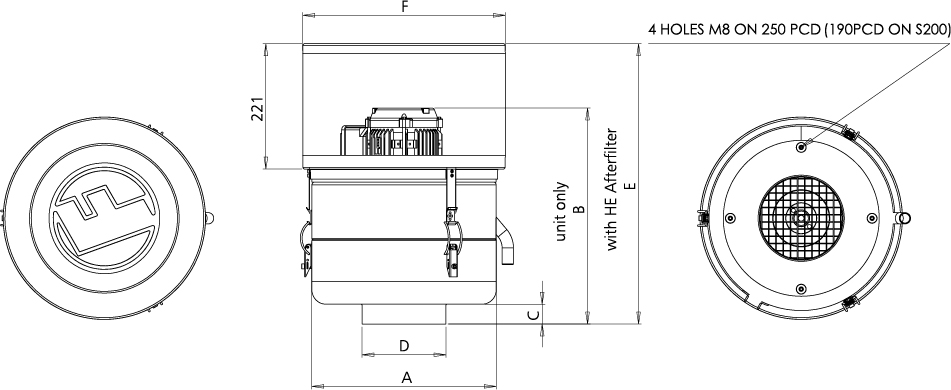

Tech Data
| Model | Airflow m3/hr | Motor 1 | A mm | B mm | C mm | D mm | E mm | F mm | Weight 2 kg | Noise 3 dBA | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S200 | 180 @ 50Hz 215 @ 60Hz |
0.18kW 50Hz 200v, 220v, 380v, 400v |
0.18kW 60Hz 200v, 220v, 230v, 440v, 460v, 480v |
260 | 302 | 30 | 73 | 423.50 | 324 | 8 | 62 |
| S400 | 425 @ 50Hz 500 @ 60Hz |
0.55kW 50Hz 200v, 220v, 380v, 400v |
0.55kW 60Hz 200v, 220v, 230v, 440v, 460v, 480v |
325 | 374 | 35 | 148 | 494.50 | 357 | 14 | 65 |
| S800 | 800 @ 50Hz 950 @ 60HZ |
0.55kW 50Hz 200v, 220v, 380v, 400v |
0.55kW 60Hz 200v, 220v, 230v, 440v, 460v, 480v |
325 | 427 | 35 | 148 | 543.50 | 357 | 15 | 67 |
- 1 Motors to be used on specified voltages only.
- 2 +/- 5% tolerance
- 3 Results are in test conditions ± 3% tolerance. Local variations and in use conditions may affect readings.
Accessories
The S/FX Series can be fitted with prefilters, afterfilters and stands - see Filtermist oil mist collector accessories.
